1GE 3FE CATV USB 2.4G Wifi Optical Network Unit WEB CLI OLT Management

Product Categories
Shenzhen Optfocus Technology Co., Ltd.
Contact Now

1GE 3FE CATV USB 2.4G Wifi Optical Network Unit WEB CLI OLT Management

  • 1
  • 2
  • 3

Brand Name : OPTFOCUS

Model Number : 1GE+3FE+CATV

Certification : 3C,CE,RoHS

Place of Origin : Shenzhen

MOQ : 2 piece

Price : USD 12.9 1piece

Payment Terms : L/C, T/T

Supply Ability : 5000 piece a month

Delivery Time : 7-14 days

Packaging Details : Box and carton

Router : PPPOE&Bridge

Pon model : XPON

Management : WEB;CLI;OLT

Fiber port : SC/UPC

Key word : GPON OLT

Keywords : ONU

Wifi : 2.4GHz

Warranty : 1 Year

Contact Now

1GE+3FE+CATV+USB+2.4G Wifi 12 years manufacturer OEM available
Product Description

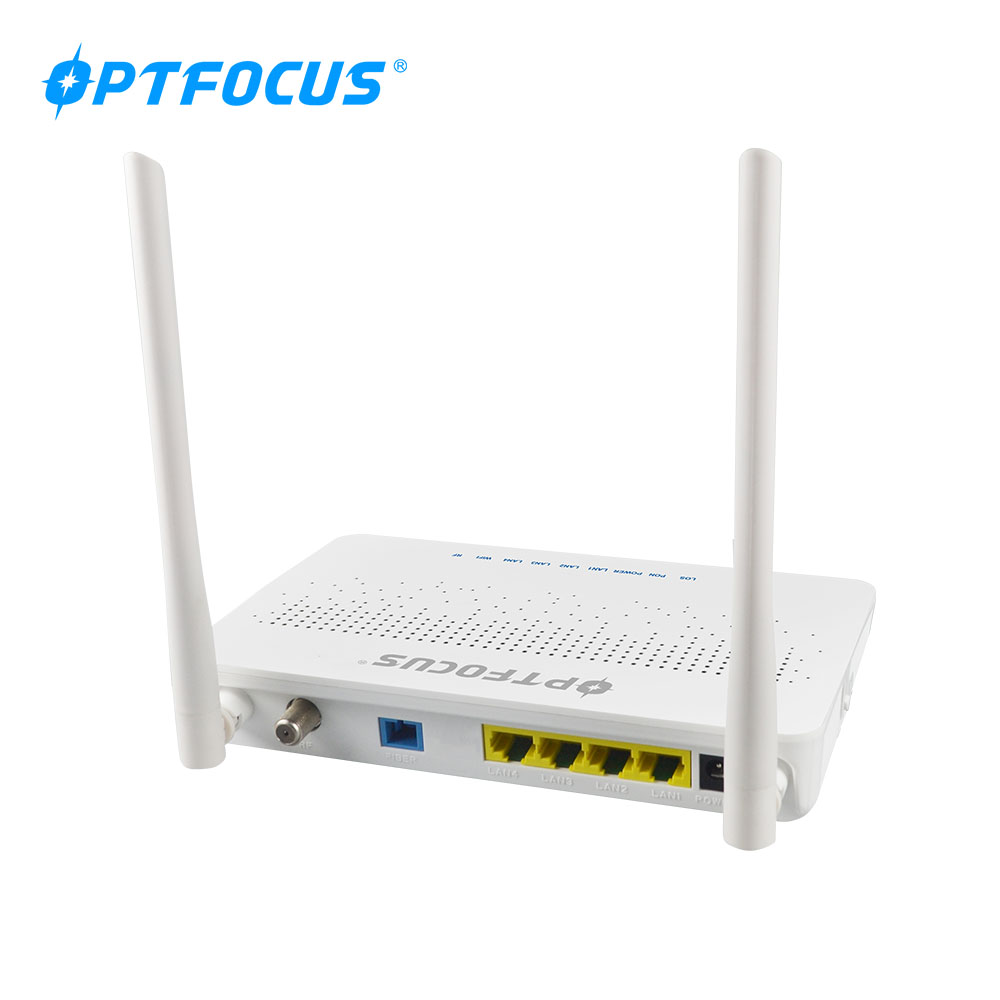

1GE 3FE CATV USB 2.4G Wifi Optical Network Unit WEB CLI OLT Management
OFSX624-CW XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
Specification
Tech parameters
description
Up-link interface
1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244
Gbits/s(EPON) rate Fiber type:SC/UPC
Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism
Wavelength(nm)
TX 1310nm,RX 1490/1550nm
Fiber connector
SC/UPC connector (SC / APC optional)
Down-link data interface
3*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
Indicator LED
9 pcs
DC supply interface
input＋12V 1.5A
Power
≤10W
Operating temperature
-5～+55℃
Humidity
10～85%(non-condensation)
Storage temperature
-30～+70℃
Dimension(MM)
188*125*35mm(mainframe)
Weight
0.5Kg(mainframe)
1GE 3FE CATV USB 2.4G Wifi Optical Network Unit WEB CLI OLT Management
Wifi Characteristics
Tech features
description
antenna
2T2R Mode
5DBI Gain ,Frequency:2.4G
rate
300Mbps PHY rate
encryption methods
WFA,WPA,WPA2,WAPI
CATV Technical features
Tech features
description
Optical wavelength
1540~1560nm
Optical input range
0~-15 DBm
Optical return loss
≥45 DB
Bandwidth
45~1000 MHz
Flatness
士 1 DB
RF output level
≥72 dBuv
AGC control range
0~-14 DBm
RF Output return loss
≥14 DB
Output impedance
75Ω
CNR
≥50 DB
CTB
≥60 DB
CSO
≥60 DB

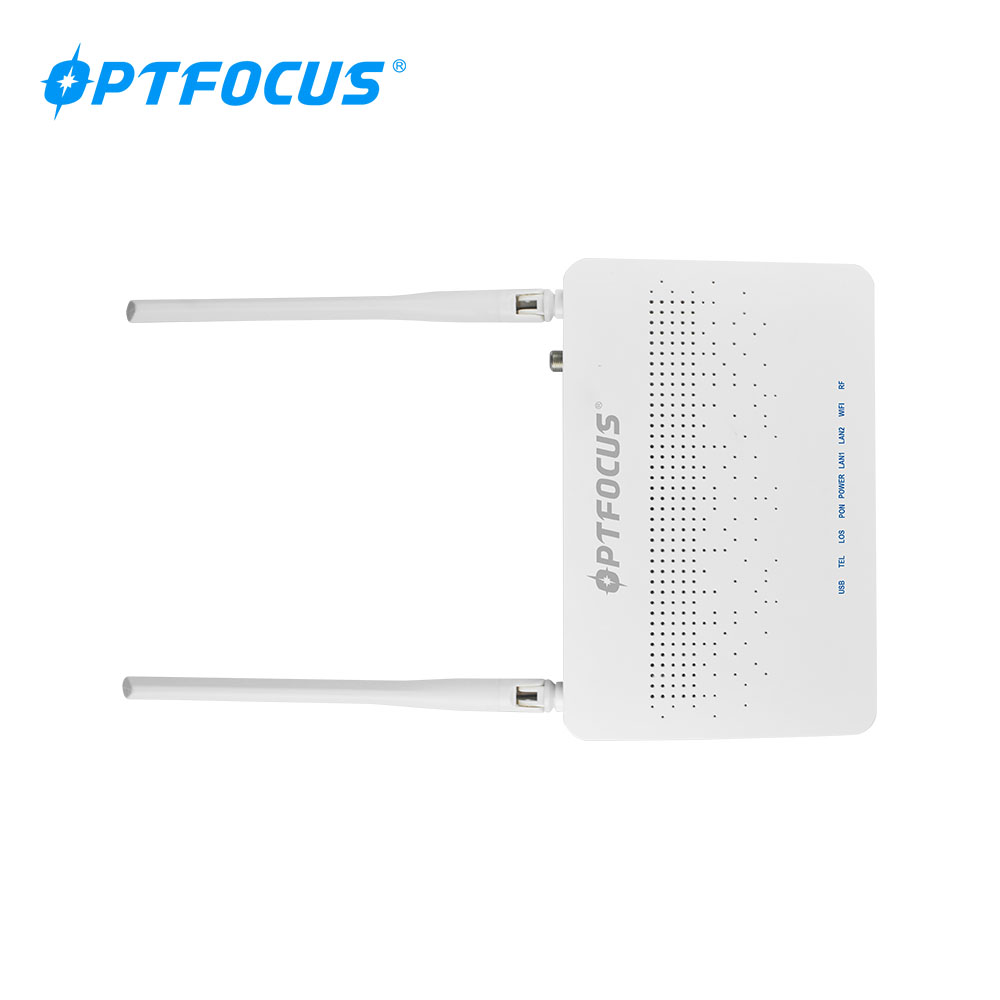

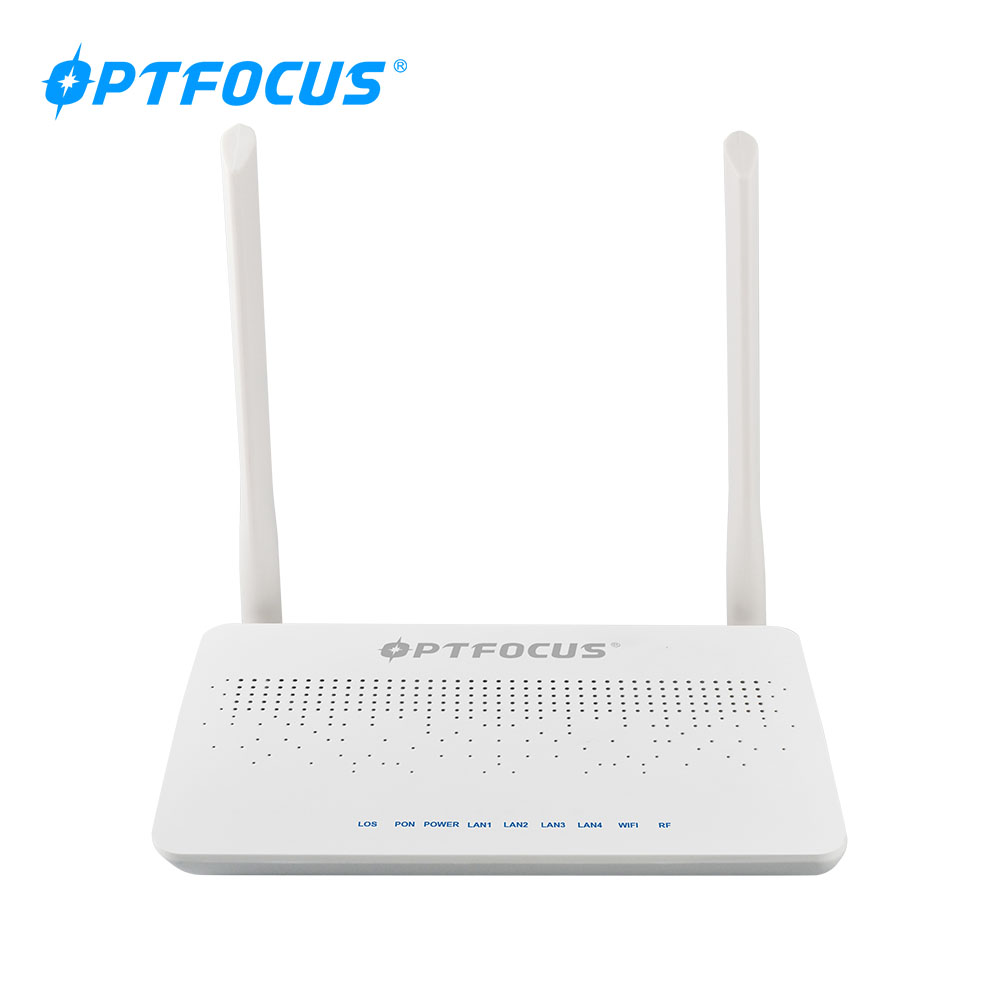

Definition of indicator LED
symbol
color
meaning
PWR
green
ON:successfully connect with power OFF:fail to connect with power
PON
green
ON:ONU port Link link correctly Flicker: PON registering
OFF:ONU ports link link faulty
LAN
green
ON: Link up correctly Flicker: data is transmitting OFF: link down faulty
WIFI
green
ON: WIFI is running OFF:WIFI startup fail
LOS
red
Flicker: fail to connect with PON port
OFF: detected fiber to input
CATV
Green
Input optical power:0~ -15DBm
red
Input optical power:≥0DBm,or -15DBm≥
Packing & Delivery
1GE 3FE CATV USB 2.4G Wifi Optical Network Unit WEB CLI OLT Management
1GE 3FE CATV USB 2.4G Wifi Optical Network Unit WEB CLI OLT Management
Each product is packed in a high quality PE bag, Then put into a box or carton.
Company Profile
00:00
02:56
1GE 3FE CATV USB 2.4G Wifi Optical Network Unit WEB CLI OLT Management
1GE 3FE CATV USB 2.4G Wifi Optical Network Unit WEB CLI OLT Management
1GE 3FE CATV USB 2.4G Wifi Optical Network Unit WEB CLI OLT Management
Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years' experience in global sales and services. Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator. OPTFOCUS manufacturing center covering area around 2,500 Square meter, and owning three production workshops, 9 production lines. Advantage of our company : 1 National High-tech enterprise certification; 2 Fiber Optical Innovative &production team Over 10 years; 3 Fiber optical active and passive components production Workshop; 4 Strict quality management system; 5 Professional One stop supply & service; 6 OEM&ODM available; 7 Reliable and Timely customer services;
1GE 3FE CATV USB 2.4G Wifi Optical Network Unit WEB CLI OLT Management
FAQ
1. who are we?
A:We are a 12 years manufacturer specialize in fiber optic equipment, mainly focus on the best quality and price goods.

2.What payment terms do you accept
A:TT,Paypal.WU and etc

3.what can you buy from us?
A:ONU,OLT,MC,POE,SWITCH,PASSIVE COMPONENT

4. Can I get sample first?
A:Yes we can discuss more details about this with you

5. Can you print my logo on it ?
A:Yes we are factory, OEM&ODM is available for us
